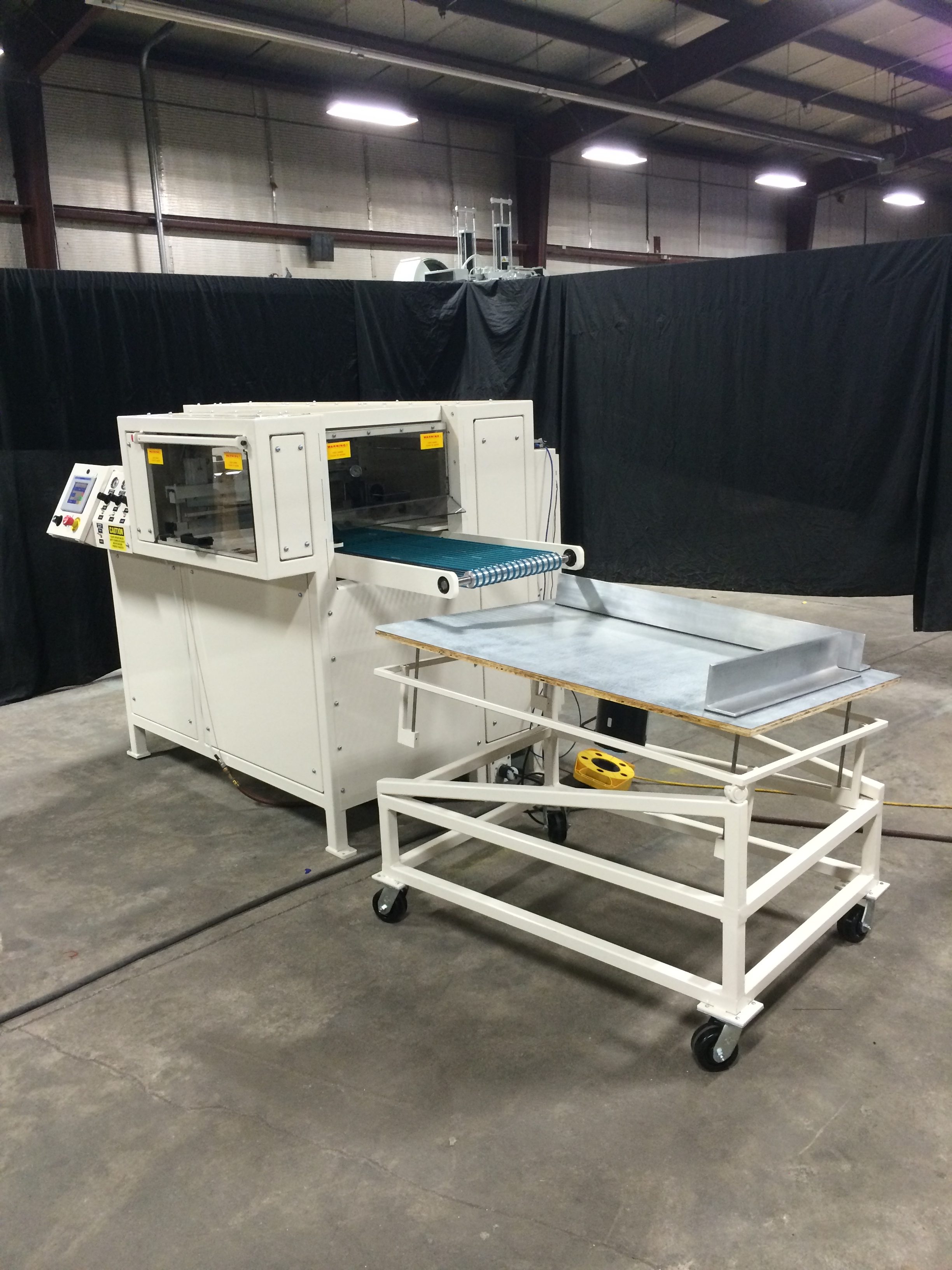

Machine is capable of cutting material from 0.0055" to 0.013" from 0 to 45 degrees with 0.5 degree accuracy.

‍

Specifications:

· 12” max web width

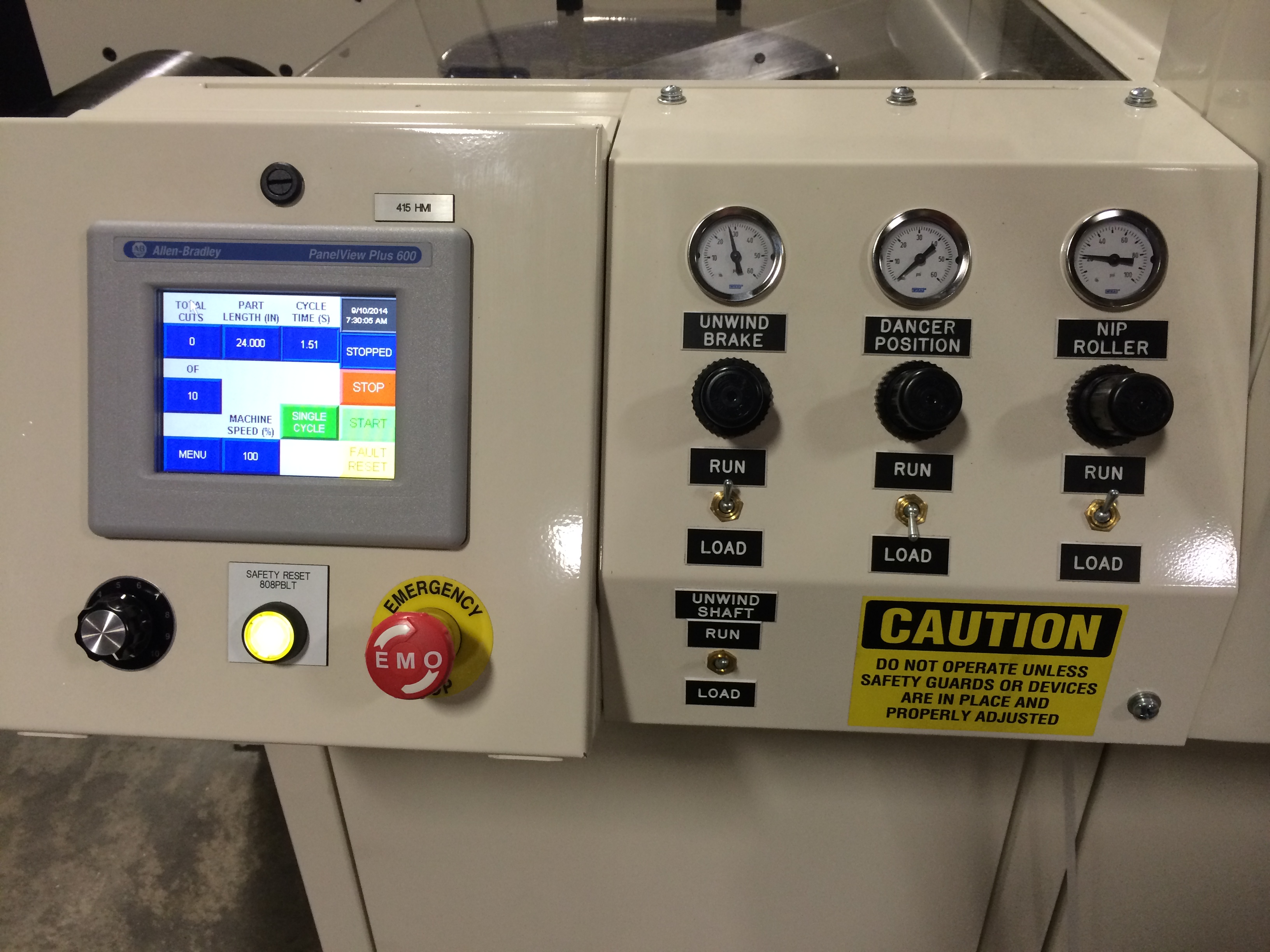

· Allen Bradley controls system

· Servo driven

· Programmable speed with accel / decel selects

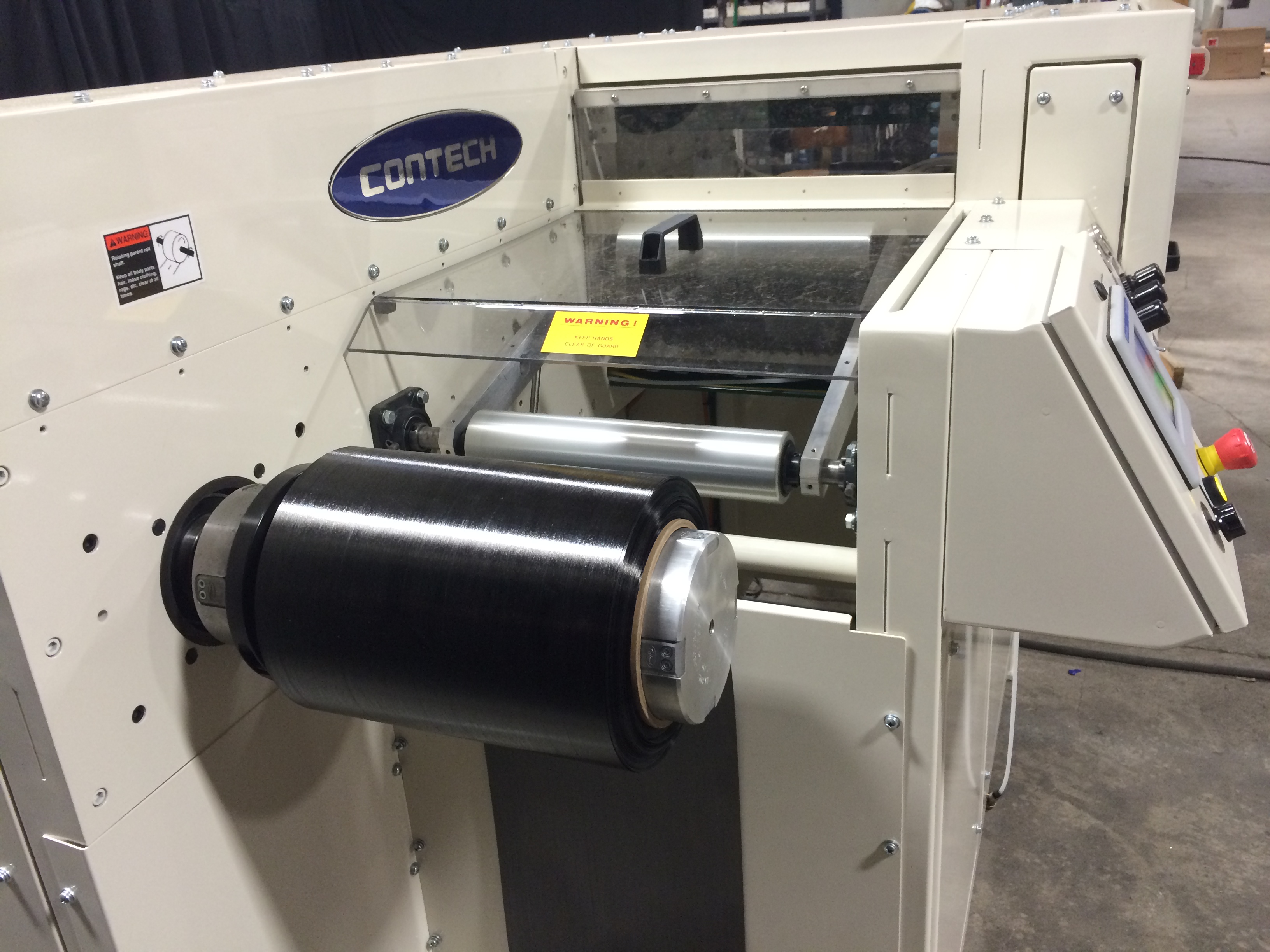

· 6” cantileverd air shaft unwind with air brake

· Dancer for tension control

· Air biased increment nip rollers

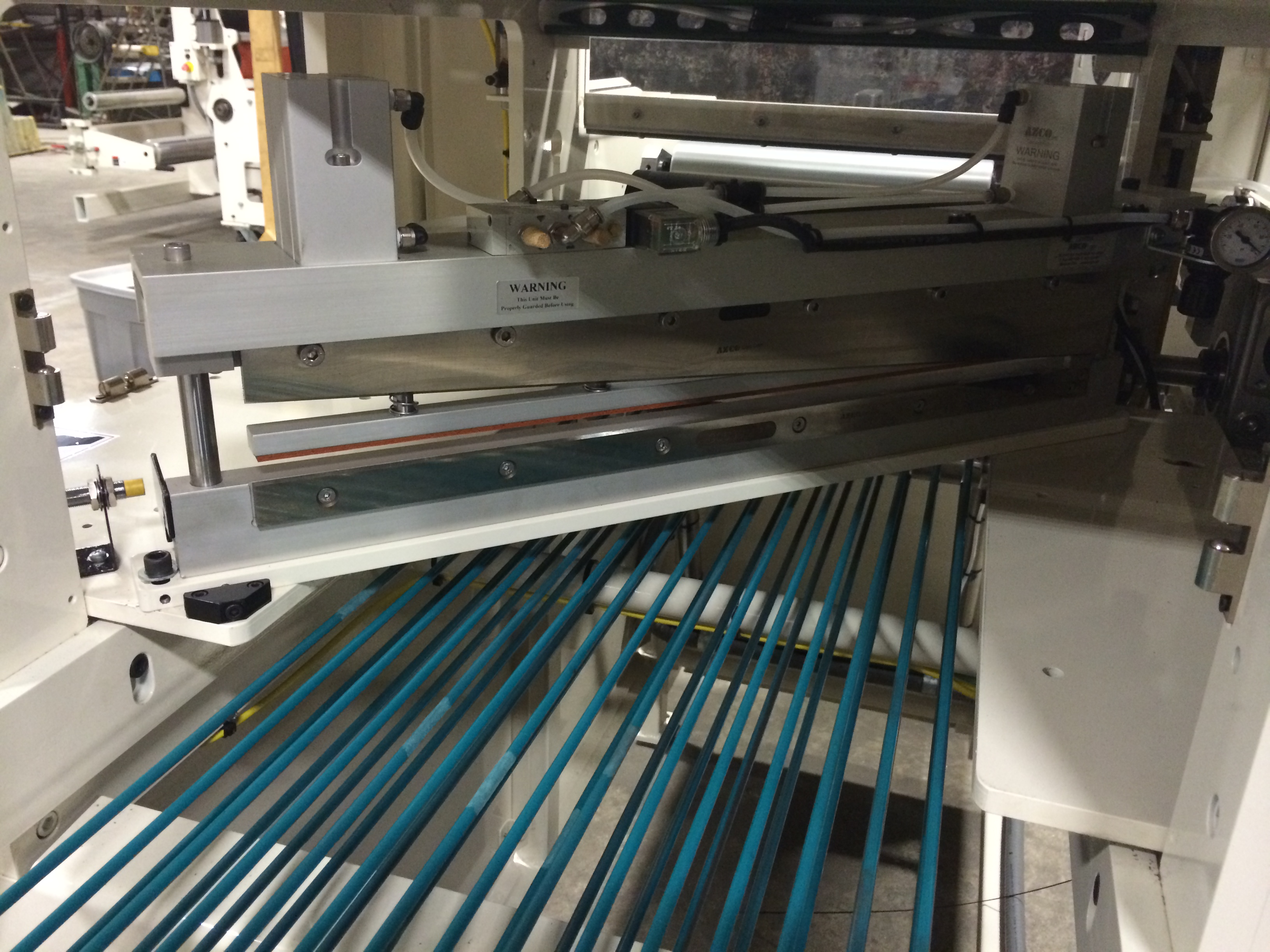

· Heavy duty cutting blade assembly

· Down acting scissor type cutter blades

· Angle 0-45 degree with 0.5 degree accuracy

· Repeatability within 0.015"

Utilities:

Electrical: 480v 60Hz, 3 phase (others available)

Air: 90 psi

‍

Options:

 * Full customization available
