Custom Slitter Rewinder System

‍

The system is composed of an unwind station, a slitter station, and a dual shaft rewind.  The objective of the machine is to unwind a roll of material, then slit the roll of material into multiple smaller rolls and rewind them separately. Each subsystem and its contribution are explained in the coming sections.

‍

Specifications: (as pictured)

· Heavy duty unwind with Auto roll lift and shaft-less capability

· VFD driven cantilever style rewind shafts and auto end support

· Modulated brake system

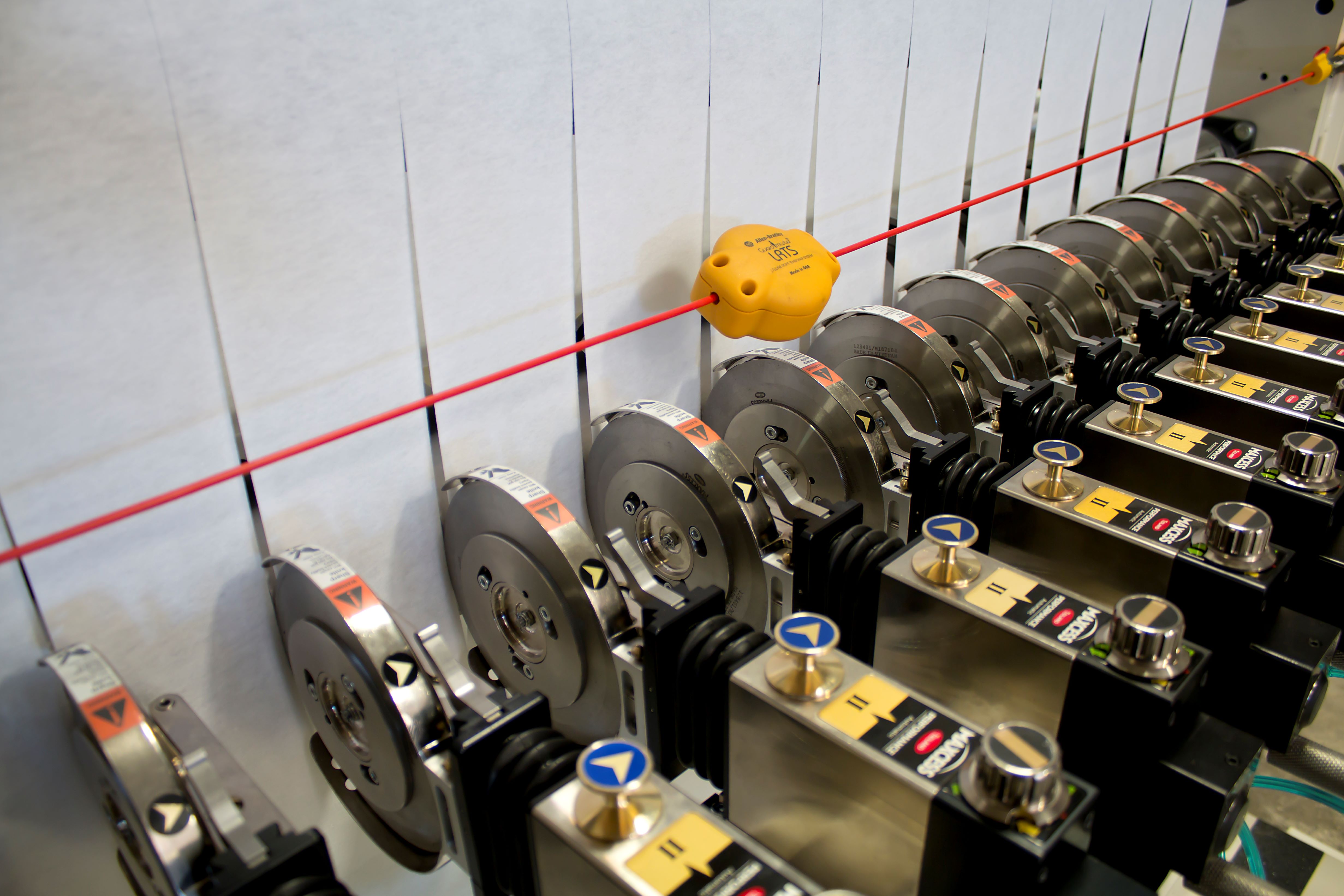

· 15 lane Class II Shear Slitter

· Air shaft lower rings with digital measuring system

· Allen Bradley controls with color HMI

· Variable speed up to 400 fpm

· Power: 480v, 60Hz, 3Ph

Options:

· Web guide system for unwinds

*Full customization available

‍
