Fiberglass Laminator

‍

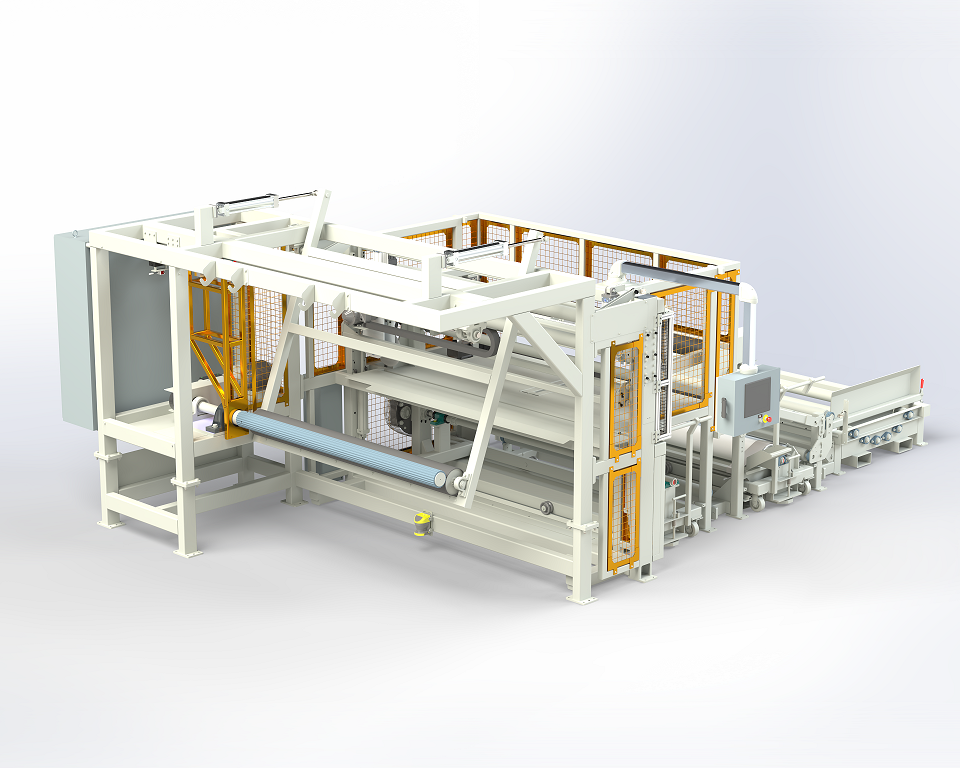

The system is composed of four modules; an Unwind Module, Glue Drum Module, Cross Cut Module, and Rewind Module. These modules process a roll of facing, and a roll of insulation, into a compressed roll of insulation with facing glued to one side. The final roll can be partial cut at regular intervals, slit down the middle, and cut to length.

‍

Specifications: (as pictured)

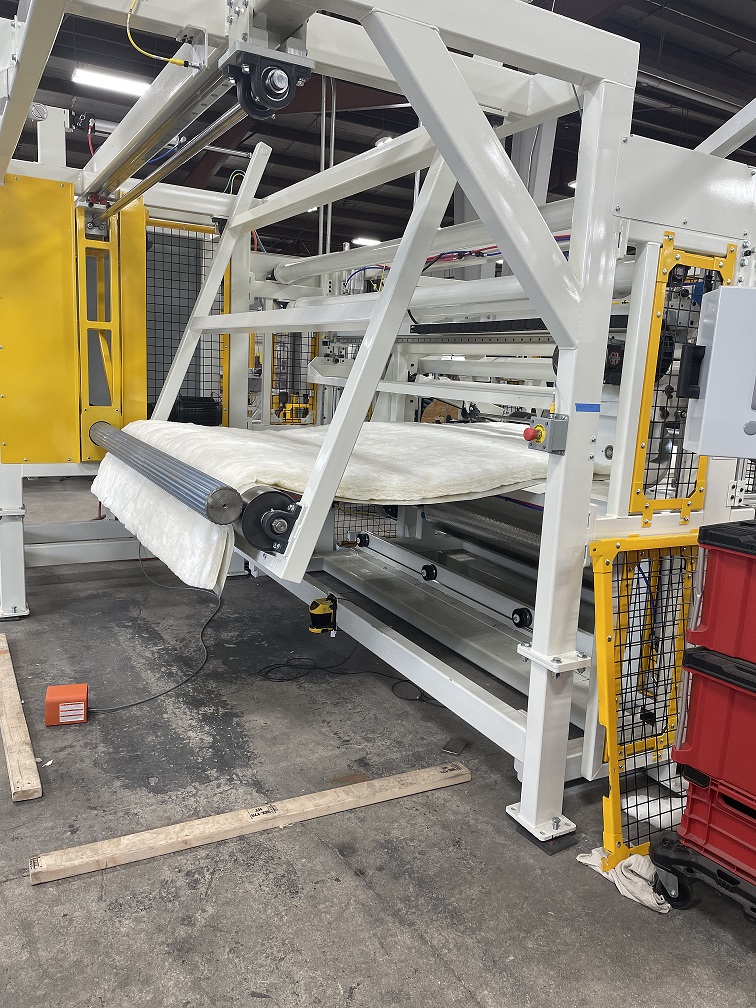

· Cradle Type (Fiberglass) Unwind (unpowered)

· Adjustable side plates guides for variable roll diameter

· Dual safety chucks with 3” air shaft and air brake

· Roll diameter sensing for auto tension control

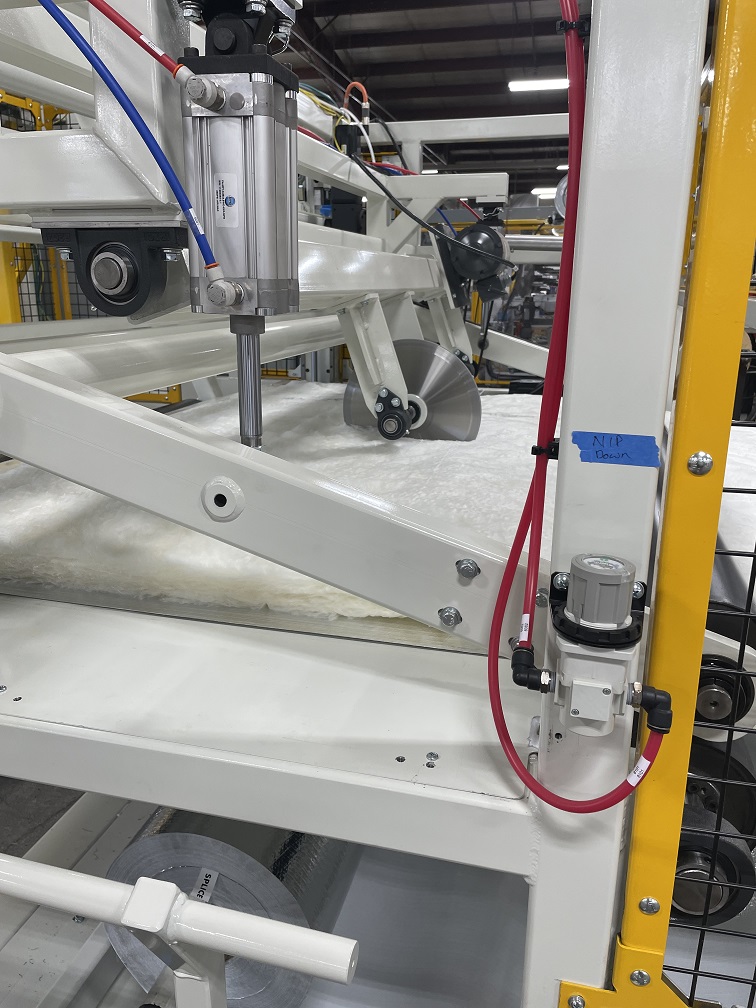

· VFD driven laminating nip set.

· Adjustable air biased opening to aid in setup and run height control

· Powered nip rollers to aid downstream travel of material.

· VFD driven inline slitting.

· Variable speed rotary crosscut blade for cut off

· Programmable Linear cross cut limits to minimize cut time of narrower webs.

· Adjustable roll compression

· Overhead manually attached stretch wrap roll film dispenser for securing the finished roll

· Allen Bradley PLC with touch screen display.

‍

Electrical: 480 Volts  60 Cycles  3 Phase (other upon request)

Air: 90 psi dry and clean air.

Mechanically capable of up to 60 fpm

*Full customization available‍

‍
